a) Tube Size :
- Length 100mm Diameter 13mm
- Length 100mm Diameter 16mm
b) Voitage : 380V 1.0 kw
c) Machine size : W 1700 L2200 H 2100 (Unit: mm)
d) Net Weight : 920 kg Gross Weight1.1400 kg

- 13mm (diameter) x 100mm (length) (2 pieces in tube hold)
- 16mm (diameter) x 100mm (length) (2 pieces in tube hold)
- Load 16 pieces of tube cups on rotary disc that moves intermittently.
  Put two of tubes into one of the cup vertically
- Load 60 vertical pallets on robot system.
- The robot system feeds each 2 tubes to rotary disc cup vertically.
- Inspect that the rotary disc cup has two of tubes.
  (Do not feed a cap at following process with no tube.)
- Feed two of caps to two of tubes.
- Inspect that two of caps have been fed to the tubes.
  (The tubes having no cap shall be removed because of defective product).
- Keep vacuum in tubes at the place of rotary disc by intermittent movement.
  (Display vacuum pressure in digital and control pressure value easily.)
- Inspect vacuum pressure in tubes
  (The tube has inspection function of vacuum pressure.)
- Inspect poor quality product of vacuum and reject defective product.
- Inspect good quality vacuum and then do capping.

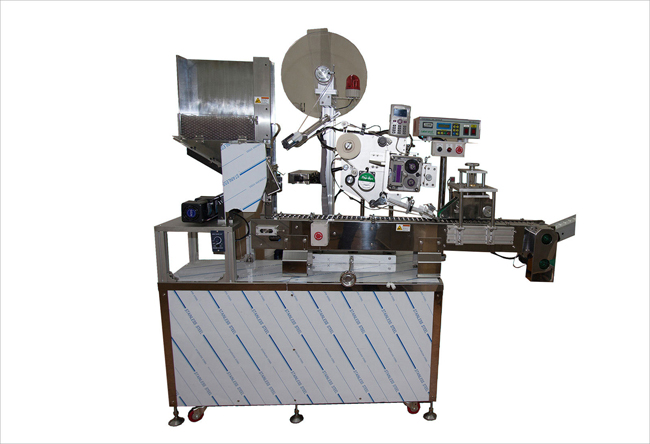

- Feed tubes having good quality vacuum to labeling machine automatically.
- Do labeling automaticall.
- Produce labeled product.

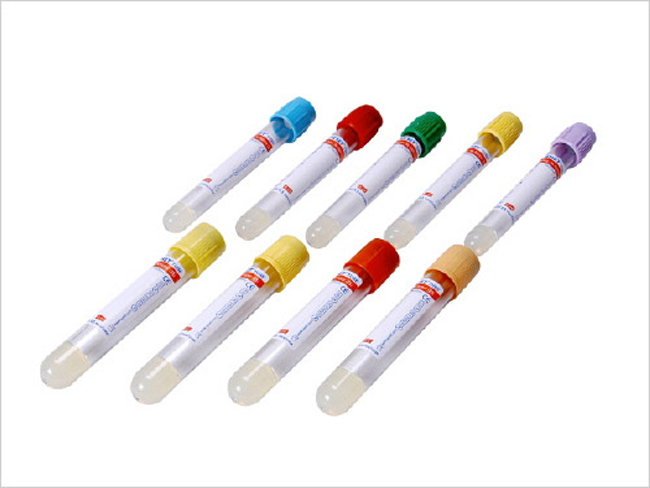

- 2 units of the machine produce vacuum tube products filled with
  13 x 100 mm and 16 x100 mm of gel + BCA.
- Visit our homepage to see video images of the machine.

- ISO 90001
- EN 46002
- ISO14001
