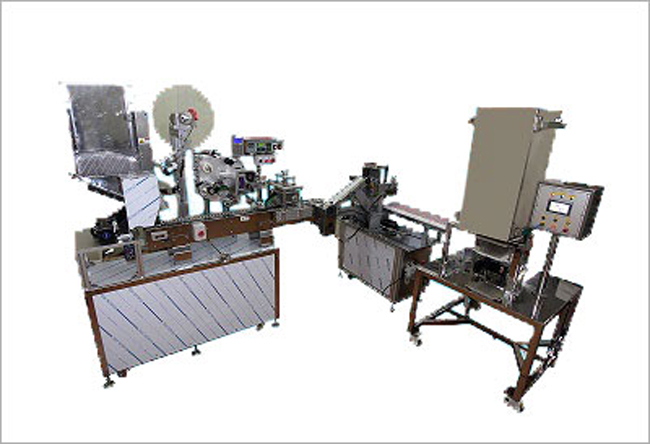

- DY-05 Auto BCA Spray & Gel Filling machine
- Tube Size : 1) Length 100mm Diameter 13mm
- Length 100mm Diameter 16mm
- Voitage : 380V 1.0 kw
- Machine size : W 1500 L 3200 H 2100 (Unit: mm)
- Net Weight : 1200 kg Gross Weight1.300kg

- 13mm (diameter) x 100mm (length) (2 pieces in tube hold)
- 16mm (diameter) x 100mm (length) (2 pieces in tube hold)
- Load 16 tube cups on rotary disc that moves intermittently.
  Put 2 tubes into one of tube cup vertically.
- Put two pieces of tubes into one of auto feeding of tubes vertically
   (auto arraying of parts feed).
- Inspect that the rotary disc cup has two of cups.
- Check that the rotary disc cup has two of cups
  (Remove one of cup intermediately because of defective product).
- Spray exact amount of BCA (Adjust amount of the spray).
- Keep BCA dry by hot air (Control strength of the hot air).
- Gel filling (Control amount of gel filling.)
- Put 60 tubes on the pallet by a robot system. (Visit our homepage to see video images).
- DY-05 machine buzzes and suspends automatically with no pallet on the robot system.
- Feed a pallet to suspend buzz and to run DY-05 automatically.
- Load 60 tubes on the pallet vertically. An operator shall load the tubes on movable cabinet.
- An operator shall move movable cabinet to storage warehouse at 40℃.
- Visit our homepage to see video images of the machine.
